Feed Grain Food Seed Crude Fiber Analyzer

Feed Grain Food Seed Crude Fiber Analyzer

Short Description:

Brand:NANBEI

Model:SLQ-6A Feed Grain Food Seed Crude Fiber Analyzer

Application:SLQ-6A crude fiber analyzer is suitable for the determination of crude fiber, lignin, cellulose and hemicellulose in grain, feed, food and other agricultural and sideline products.


Product Detail

Product Tags

product Characteristics

Feed Grain Food Seed Crude Fiber Analyzer



Introduction about crude fiber analyzer:

NLQ-6A crude fiber analyzer is based on the principle of acid-base washing method, which combines acid, alkali treatment and water washing into one. The crude fiber content was determined by fully enclosed electric heating, liquid addition, digestion, suction filtration and washing. There is no need to transfer the sample during operation, and the coarse fibers in the material can be broken down. At the same time, a single fiber can be adjusted individually and arbitrarily according to the required temperature, so as to achieve the purpose of accuracy and speed. SLQ-6A Crude Fiber Analyzer is suitable for the determination of crude fiber, lignin, cellulose and hemicellulose in agricultural and sideline products such as grain, feed and food.



Feature about crude fiber analyzer:
The high-efficiency pressure injection type liquid addition is adopted, and the liquid addition is fast and smooth, which solves the problem of unsmooth self-flow liquid addition.
2. The reheating of the reagent is automatically controlled by an electric furnace, which is safe and efficient, saves electricity, and prevents dry burning.
3. Positive suction filtration, high-performance corrosion-resistant parts
4. Split design, the reagent container is placed on the desktop, which is convenient for heating. For the structure previously placed on the upper end of the instrument, the problem of difficult heating has been solved, making it more user-friendly.

Product parameter

Product name feed grain food seed crude fiber analyzer
Measuring range 0-100%
Sample measuring quantity Max 6pcs
Sample weighing 0.5-3.0g
Measuring accuracy Repeatability ≤0.4%
Measuring time ≤90minutes
Heating method Semi-circle Silicon carbide heating,temperature adjust seperately
Sealing method Isolated with Teflon
Liquid adding method Pressure injection
Reagent heating method Automatic thermostat adjustable, over temperature protection
Anti-corrosion ability acid and alkali resistant acetone, etc.
Voltage AC220V50Hz
Rated power 2700W

Product picture

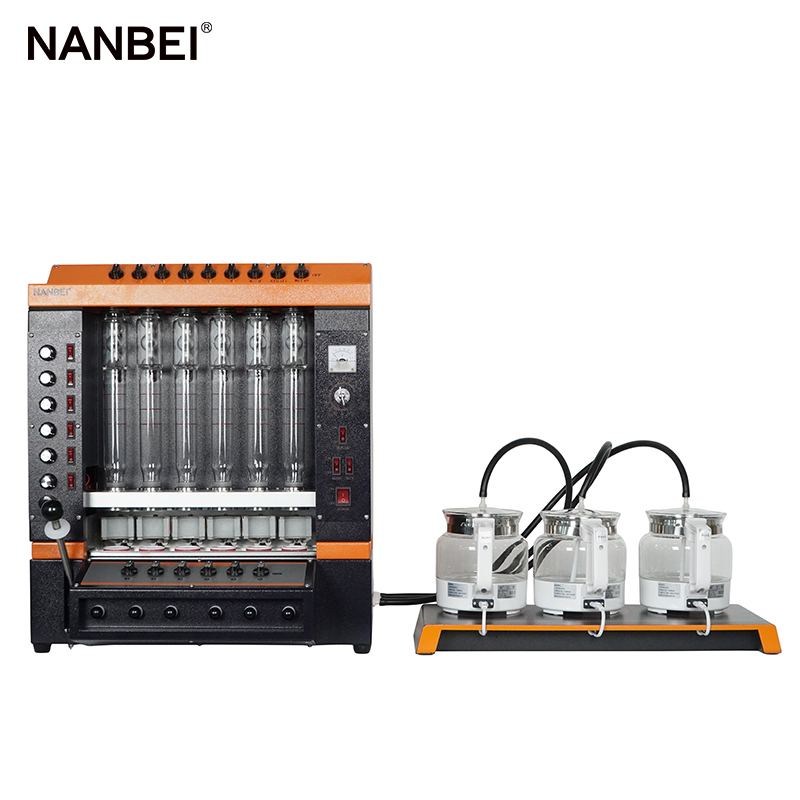

Crude Fiber Analyzer
