Low speed refrigerated Centrifuge

Low speed refrigerated Centrifuge

Short Description:

Brand:NANBEI

Model:TDL5E

TDL5E adopts brushless frequency conversion motor; Adopt fluorine-free imported compressor unit, no environmental pollution, precise temperature control. All adopt microcomputer processor for precise control, digital display of speed, temperature, time and other parameters, button programming, switch display of operating parameters and RCF value. It can store and call 10 groups of programs, and provide 10 kinds of promotion rate. Fully automatic door lock, overspeed, overtemperature, unbalanced automatic protection, the machine body is made of high-quality steel structure, and the company’s unique spring taper sleeve is used to connect the rotor and the main shaft. The rotor is fast and simple to install and unload, without directionality, safe and reliable, and feels comfortable in use more convenient. Equipped with a variety of rotors, and a variety of adapters can be designed according to the test requirements, and one machine can be used for multiple purposes. The third-stage vibration reduction achieves the best centrifugal effect.


Product Detail

Product Tags

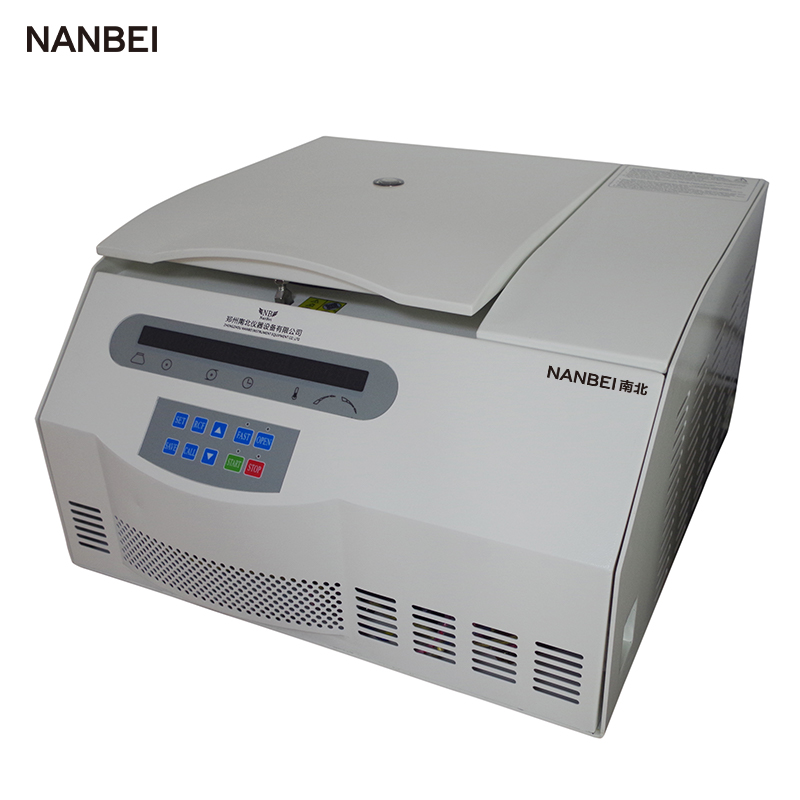

Product pictures

Technical data

max speed 5000r/min max RCF 4420×g
max volume 4×180ml temperature range -20°C40°C
timer 199h/59min noise ≤56dBA
dimension 570×600×340 net weight  68 KG
speed accuracy ±20r/min power supply AC 220V 50HZ 10A
Temperature Accuracy ±1°C
Rotor Max speed rpm Max volume  ml Max RCF ×g
Swing rotor multi-pipe 5000 Matched  for the following holder and tube shelf
4×50ml 4420
4×100ml 4420
Swing rotor 4000 4×180ml 2580
Swing rotor 4000 4×4×10/85/2ml Blood collection tube 2580
4×6×8/5/2ml Blood collection tube 2580
Fixed rotor 5000 30×15ml 3830
Fixed rotor 5000 6×15ml/6X10ml 2540
Fixed rotor 5000 12×15ml 3080
Fixed rotor 5000 24×15ml 3500
Fixed rotor 5000 6×100ml 2970
