Sample Cyclone grinder

Sample Cyclone grinder

Short Description:

Brand:NANBEI

Model:FS-II Cyclone grinder

Application:It is suitable for the crushing of various dry materials such as cereals, feed, medicinal materials, chemicals, plant leaves, grass and other types .


Product Detail

Product Tags

product Characteristics

Working principle

This machine is a high-efficiency sample grinding mill that can obtain uniform powder according to the design concept of high-speed impact generation and crushing. It is suitable for the crushing of various dry materials such as cereals, feed, medicinal materials, chemicals, plant leaves, grass and other types .



Feature

The design feature is the use of high-speed rotation of the working impeller (10,000 revolutions per minute) and the high-speed air flow formed by it, which causes the processed material to impact, roll and strongly rub against the abrasive belt to form fine particles.

The particle size of the processed product can be changed according to the need

Product parameter

This machine is equipped with 40 mesh and 80 mesh screens.

Drive power: 550 watts, single phase, 220 volts

Working impeller diameter: 127 mm

Impeller speed: 10,000 rpm

Transmission mode: nylon flat transmission belt

Feeding speed: 1-2 grams per second

Discharging method: air flow transmission, screening, automatic deposition in the sample bottle

Weight: about 16kg

Size: 330×220×380mm

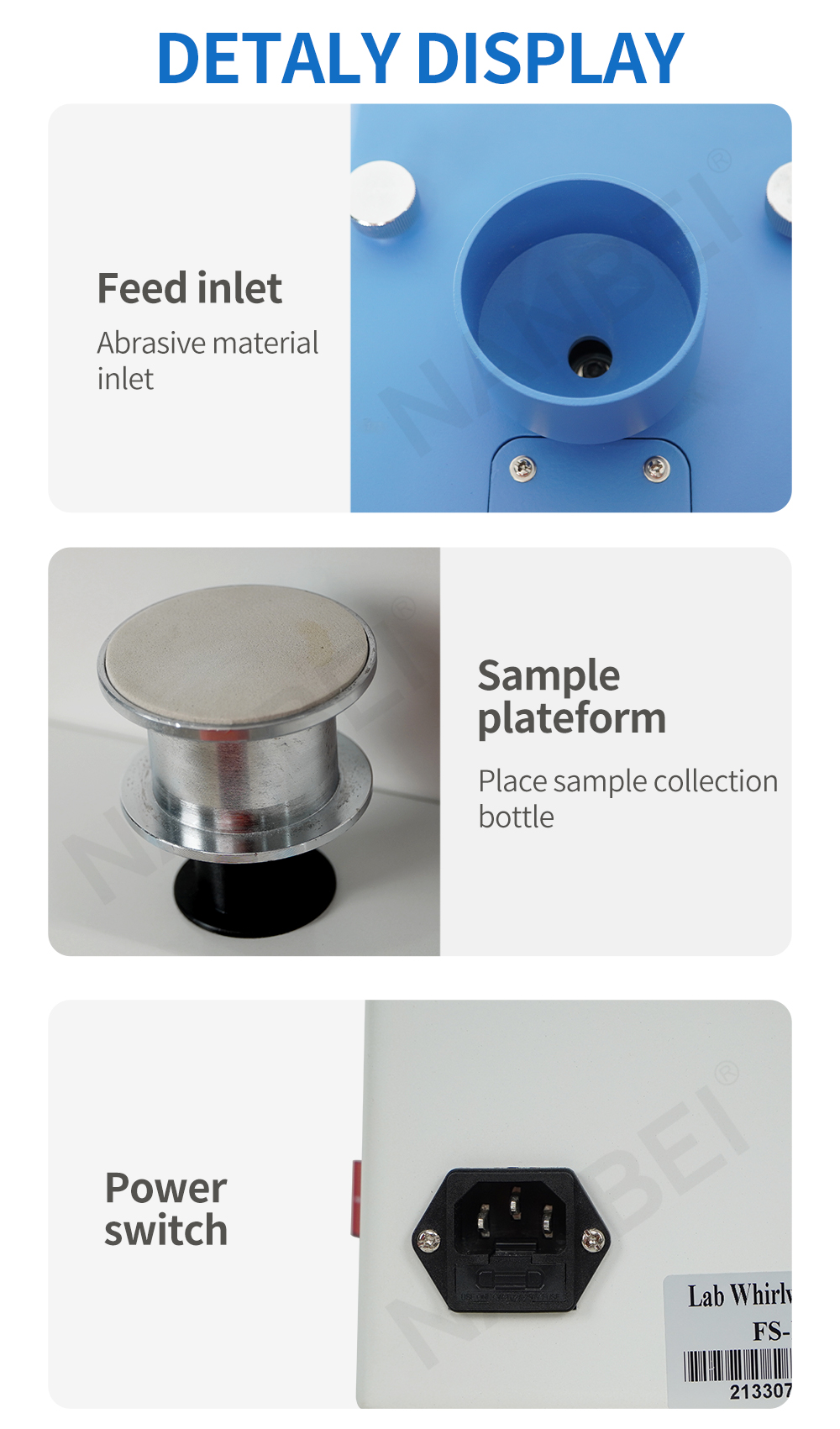

Product picture

Cyclone grinder (2)1

Cyclone grinder (2)
